• D2094404 11" Transmission Disc, 5 Pad, w/ 1-9/16" 14 Spline Hub - New
  • D2094404 11" Transmission Disc, 5 Pad, w/ 1-9/16" 14 Spline Hub - New
1 2

Farmgrit

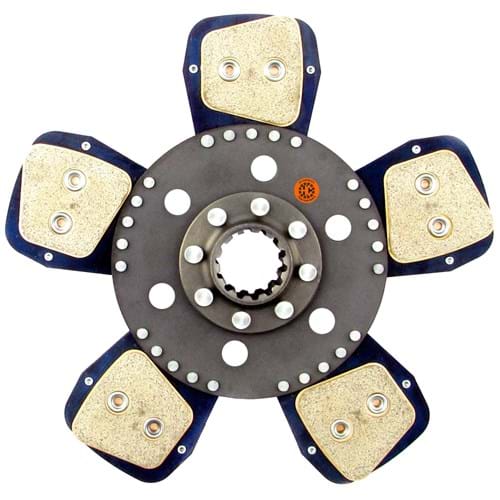

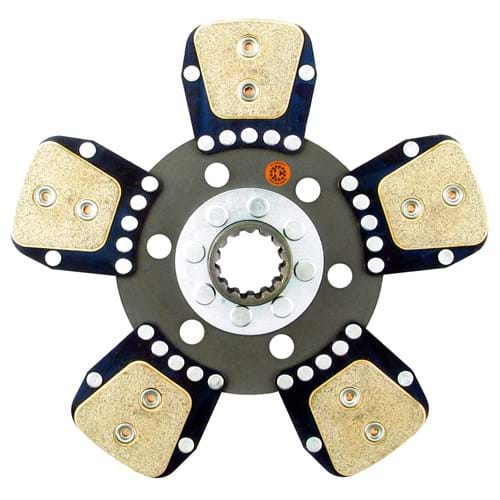

D2094404 11" Transmission Disc, 5 Pad, w/ 1-9/16" 14 Spline Hub - New

D2094404 11" Transmission Disc, 5 Pad, w/ 1-9/16" 14 Spline Hub - New

$222.51 USD
$222.51 USD
Sale Sold out
Shipping calculated at checkout.

D2094404 11" Transmission Disc, 5 Pad, w/ 1-9/16" 14 Spline Hub - New Notes

Included w/ D2094463NU, F5196820 or W3011259NU Clutch Units.

The D2094404 11" Transmission Disc, 5 Pad, w/ 1-9/16" 14 Spline Hub - New fits equipment brands such as: Allis Chalmers, Case IH, Farmtrac, Ford, Hesston-Fiat, Landini, Long, Massey Ferguson, McCormick, Minneapolis Moline, Montana, New Holland, Oliver, White

D2094404 11" Transmission Disc, 5 Pad, w/ 1-9/16" 14 Spline Hub - New Specs

  • Size 11"
  • Hub Size 1-9/16"
  • Spline Count 14
  • Disc Center Solid
  • Disc Type 5 Pad
  • New
  • Sold As Each
  • Warranty 1 Year
  • Wt. 4.25 lb.

Cross Reference Numbers

This Part Fits These Machines

Fit Notes are displayed after the Model

Allis Chalmers
TRACTOR 50408 & 12 Speed, 11" Clutch 5045 5050 6060 6070
Case IH
TRACTOR
100N Farmall 100V Farmall 105N Farmall 50A Farmall 60 Farmallw/ Single Lever PTO, Captive Disc 60A Farmall 65A FarmallIncluded w/ F87386516U Clutch Unit 65C Farmall 70 Farmallw/ Single Lever PTO, Captive Disc 75A FarmallIncluded w/ F87386516U Clutch Unit 75C Farmall 75N Farmall 80 Farmallw/ Single Lever PTO, Captive Disc 85C Farmall 85N Farmall 90C Farmallw/ Tier 4B - Mechanical Tractor, Yr. 01/15 thru 09/18 90CL Farmall 90N Farmall 90V Farmall 95C Farmall 95N Farmall JX1060CMechanical Shuttle, Captive Disc JX1070CMechanical Shuttle, Captive Disc JX1070NMechanical Shuttle, Captive Disc JX1075CMechanical Shuttle, Captive Disc JX1075VMechanical Shuttle, Captive Disc JX1085C JX1095C JX1095N JX55Transmission Disc JX60w/ Single Lever PTO, Captive Disc JX65Transmission Disc JX70w/ Single Lever PTO, Captive Disc JX75Transmission Disc JX80w/ Single Lever PTO, Captive Disc JX85Transmission Disc JX9011" Dual Stage w/ Single Lever PTO (Captive Disc), 11" Dual Stage (Transmission Disc) JX95w/ Single Lever PTO, Captive Disc
Farmtrac
TRACTOR
530Please Identify Clutch Disc Size Before Ordering, Will Not Work on 10-1/2" Discs 550Please Identify Clutch Disc Size Before Ordering, Will Not Work on 10-1/2" Discs
Ford
TRACTOR 3010S 4010S 4030 4230 4430 5010S 5530 6530
Hesston-Fiat
TRACTOR
446 450S 466 500 540 55-46 55-66 55-90 550 566 580 60-66 60-90 600 640 65-46 666 666DT 670 680 680DT 70-66 70-90 740 766 766DT 780 80-66 80-90 80-90DT
Landini
TRACTOR
254 274 284 364 4530V 4830 4860 50 55Advantage Series 5500 5530F 5530L 5530V 5560F 5560L 5830 5840 5860 5870 60Advantage & Blizzard Series (11" Clutch) 6030 6030F 6030L 6030V 6040 6060 6060F 6060L 6060V 6070 65Advantage & Blizzard Series (11" Clutch) 6500 6530F 6530L 6530V 6550 6560F 6560L 6830 6840 6860 6870 6880 75Advantage & Blizzard Series (11" Clutch) 7530F 7530L 7550 7560F 7560L 7830 7860 7860HC 7870 7880 85Advantage & Blizzard Series (11" Clutch) 8500 8530F 8530L 8550 8560F 8560L 8830 8860 8860HC 8870 Atlas 100 Atlas 70 Atlas 75 Atlas 80 Atlas 85 Atlas 90 C75Crawler Series C85Crawler Series CF70 CF75 CF80 Powerfarm 75 Powerfarm 80 Powerfarm 85 Rex 60 Rex 60F Rex 65 Rex 70 Rex 75 Rex 80 Rex 85 Rex 90 Series 60 Trekker 70 Trekker 75 Trekker 80 Trekker 85 Trekker 90 Vigneti 60 Vigneti 65 Vigneti 70 Vigneti 75 Vigneti 80 Vigneti 85 Vigneti 90
Long
TRACTOR
2360 2460 2510 2610 4608 Speed Transmission 5108 Speed Transmission 5608 Speed Transmission 610 680
Massey Ferguson
TRACTOR
154-4 154-4S 174-4S 184-4 194-4F 254-4 274-4 294-4 363 364S 374 SQ 374S 374V 384 SQ 384S 394 SP 394 SQ 394SPrior to S/N D03066
McCormick
TRACTOR
F60 F75w/ Tier 1 Engine F80w/ Tier 1 Engine F85 F90 T70w/ Tier 1 Engine T80w/ Tier 1 Engine T90w/ Tier 1 Engine
Minneapolis Moline
TRACTOR G450
Montana
TRACTOR 6864C
New Holland
TRACTOR
Powerstar 65 Powerstar 75 Powerstar 90w/ Tier 4B - Mechanical Tractor, Yr. 11/17 thru 09/18 T4.100F T4.100V T4.105F T4.105V T4.55 T4.65 T4.7509/11 & Up & Powerstar Tractors T4.85Included w/ F87386516U Clutch Unit T4.85F T4.85V T4.90Included w/ F87386516U Clutch Unit T4.90F T4.90LP T4.90V T4.95F T4.95V T4020Mechanical Shuttle T4020VEff. 01/03, T4030Mechanical Shuttle T4030FEff. 01/03, T4030VEff. 01/03, T4040Mechanical Shuttle T4040FMechanical Shuttle T4040N T4040VMechanical Shuttle T4050Mechanical Shuttle T4050FMechanical Shuttle T4050N T4050V T4050VMechanical Shuttle T4060F T4060N T4060V TD4.80Fw/ Tier 4B - Mechanical Tractor, Yr. 11/17 thru 09/18 TD4.90FIncluded w/ F87386516U Clutch Unit TD4030FIncluded w/ F87386516U Clutch Unit TD4040FMechanical shuttle. Must positively identify clutch before ordering. TD5010Mechanical Shuttle, TD5020Mechanical Shuttle, TD5030Mechanical Shuttle, TD60D11" Dual Stage w/ Single Lever PTO (Mechanical Shuttle), 11" Dual Stage (All) TD70D TD75D TD80D TD85Fw/ Tier 3 - Upgrade Tractor, Start Yr. 07/15 & Up TD90D TD90FIncluded w/ F87386516U Clutch Unit TD95DMechanical Shuttle, TN55Mechanical Shuttle (Eff. 09/99), Turf Tractor (All) TN55DMechanical Shuttle, TN55SMechanical Shuttle, TN60AEff. 01/03, TN60VA TN65Mechanical Shuttle (Eff. 09/99), Turf Tractor (All) TN65DMechanical Shuttle, TN65F TN65SMechanical Shuttle, TN65V TN70Eff. 09/99, TN70AMechanical Shuttle, TN70DEff. 09/99, TN70NA TN70VA TN75Eff. 09/99, Mechanical Shuttle, TN75AMechanical Shuttle, TN75DEff. 09/99, Mechanical Shuttle, TN75FMechanical Shuttle, TN75VMechanical Shuttle, TN75VAMechanical Shuttle, TN85AEff. 01/03, TN85DAEff. 01/03, TN85FAEff. 01/03, TN85SA TN90FOrchard Tractor, Eff. 09/97, TN95AEff. 01/03, TN95DAEff. 01/03, TN95FOrchard Tractor, Eff. 10/01, TN95FAOrchard Tractor, Eff. 10/01, TN95NAOrchard Tractor, Mechanical Shuttle TN95VAEff. 01/03, TT50AIncluded w/ F87386516U Clutch Unit TT55 TT60A TT65 TT75 TT75A Workmaster 45Included w/ F87386516U Clutch Unit Workmaster 50 Workmaster 55Included w/ F87386516U Clutch Unit Workmaster 60 Workmaster 65Yrs. Prior to 9/18, Will Not Fit Tier 4A Machines, Included w/ F87386516U Clutch Unit Workmaster 75Yrs. Prior to 9/18, Will Not Fit Tier 4A Machines, Included w/ F87386516U Clutch Unit
Oliver
TRACTOR 1355 1365 1370
White
TRACTOR 2-50 2-60 700
