HA232447 KIT CREE LED Hi-Lo Beam Corner Headlight Kit, 9000 Lumens

HA232447 KIT CREE LED Hi-Lo Beam Corner Headlight Kit, 9000 Lumens

$322.83 USD
$322.83 USD
Sale Sold out
Shipping calculated at checkout.

HA232447 KIT CREE LED Hi-Lo Beam Corner Headlight Kit, 9000 Lumens Notes

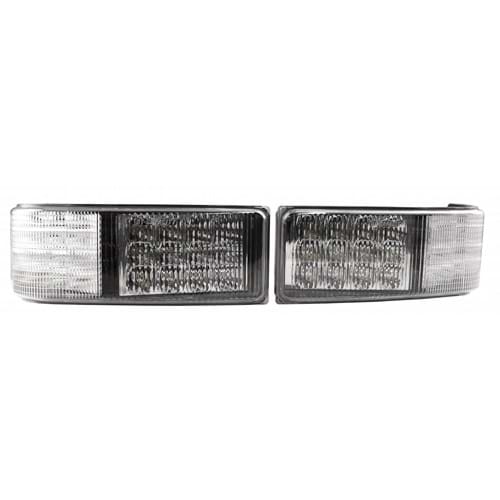

Turn heads and illuminate the fields ahead with these ultra-white CREE LED Hi-Lo Beam Corner Lights!

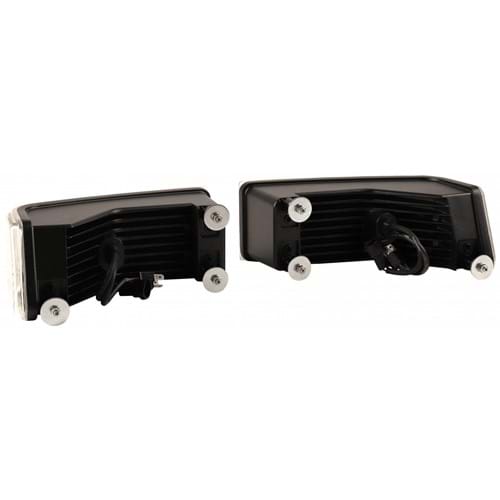

• Ours feature an easy one person installation! With the studs already in the bracket, there is no need to stand on your head or grown an extra arm.
• Designed with larger cooling fins to dissipate heat to protect from melting and malfunction
• Made of polycarbonate material to maintain the color and strength of the lenses over time
• IP67 waterproof rating totally protects against dust as well as 3ft of immersion
• Recommended for off-road applications

The HA232447 KIT CREE LED Hi-Lo Beam Corner Headlight Kit, 9000 Lumens fits equipment brands such as: Case IH, McCormick

The HA232447 KIT is a substitute for the following discontinued products: HA232448, HA232449

HA232447 KIT CREE LED Hi-Lo Beam Corner Headlight Kit, 9000 Lumens Specs

  • Amps (@12V) 5

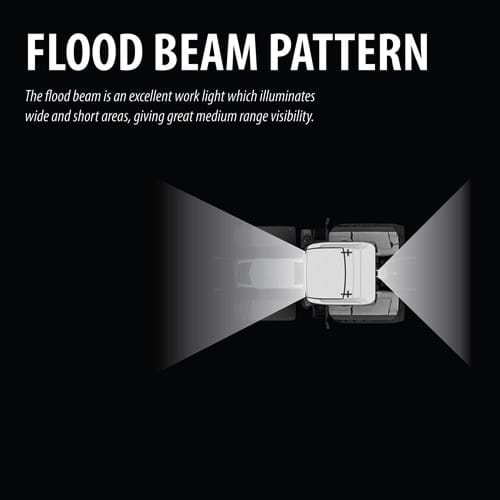

  • Beam Style Flood Beam, Hi-Lo Beam
  • Dimensions 10.25" x 4.25"
  • Diode Manufacturer CREE
  • Installation Plug & Play Connection
  • Lens Material Polycarbonate
  • Location Corner Headlight
  • New
  • Raw Lumens9000
  • Shape Corner
  • Sold As Set
  • Volts 9-32V
  • Waterproof Rating IP67
  • Watts 60
  • Wt. 12.0 Lbs.

Documents & Resources -

Cross Reference Numbers

This Part Fits These Machines

Fit Notes are displayed after the Model

Case IH
SPRAYER
4020 Titan 4030 TitanTier 4 4040 Titan 4050 Titan 4420 Patriot 4520 Titan 4530 TitanTier 4 SPX4410 Patriot
SPREADER
FLX3330BEff. 12/99-09/02 FLX4010 FLX4510
TRACTOR
100 MaxxumLimited & Value Models Tier 3, w/Chassis # C6556 105U FarmallNon EP Models only, 1/08-12/14 110 MaxxumEP & CVT Models Tier 4 w/Variant Code 330698, Limited, Pro & Value Models Tier 3, w/Chassis # C6556 110A FarmallMexican Model 115 MaxxumLimited, Pro & Value Models Tier 3 w/Chassis # C6556 120 MaxxumEP & CVT Models Tier 4 w/ Variant Code 330698107, Pro Models Tier 3 w/Chassis # C6556 120A FarmallEff. 8/12-7/15 125 MaxxumLimited, Pro & Value Models Tier 3 w/Chassis # C6556 125A Farmall 130 MaxxumEP & CVT Models Tier 4 w/Variant Code 330698107, Pro Models Tier 3 w/Chassis # C6556 140 MaxxumLimited & Pro Models Tier 3 w/Chassis # C6556 140A FarmallEff. 8/12-7/15 45A Farmall 55A FarmallEff. 3/10-12/17 65A FarmallTier 3A, Eff. 11/10-12/14 65C FarmallEff. 04/08-12/14 75A FarmallEff. 6/10-12/17 75C FarmallEff. 04/08-12/14 85C FarmallEff. 1/07-3/14 85U FarmallEff. 1/08-5/14 95C FarmallEff. 1/07-4/14 95U FarmallEff. 1/8-9/14 CX100Eff. 1/98-12/02 CX70Eff. 1/98-12/02 CX80Eff. 1/98-12/02 CX90Eff. 1/98-12/02 JX100UEff. 5/02-12/05 JX1060CEff. 12/03-6/08 JX1070CEff. 12/03-12/07 JX1070UEff. 1/04-12/08 JX1075CEff. 12/03-12/07 JX1080U JX1085Cw/ Cab JX1090U JX1095Cw/ Cab JX1100U JX70U JX80U JX90U MX100C MX80C MX90C MXM120 MXM130 MXM140 MXM155 MXM175 MXM190 MXU100 MXU110Includes X-Line & Value Models MXU115Includes Value Models MXU125 MXU130Includes Value Models MXU135
McCormick
TRACTOR
CX100 CX105 CX110 CX70 CX75 CX80 CX85 CX90 CX95 MC105 MC115 MC120 MC135 MC95 MTX120 MTX135 MTX150 MTX165 MTX185 MTX200 XTX185 XTX200 XTX215
