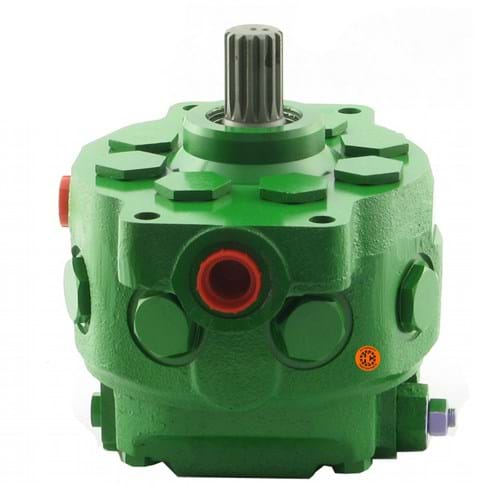

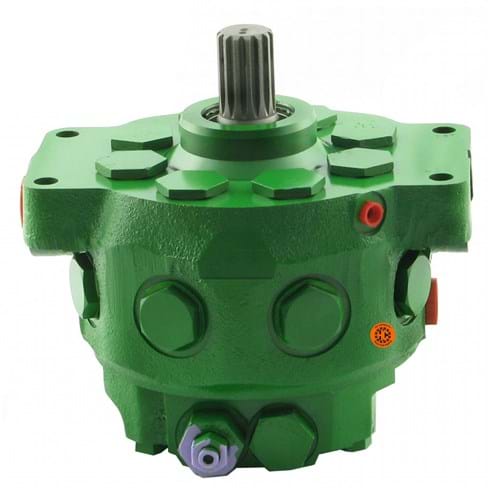

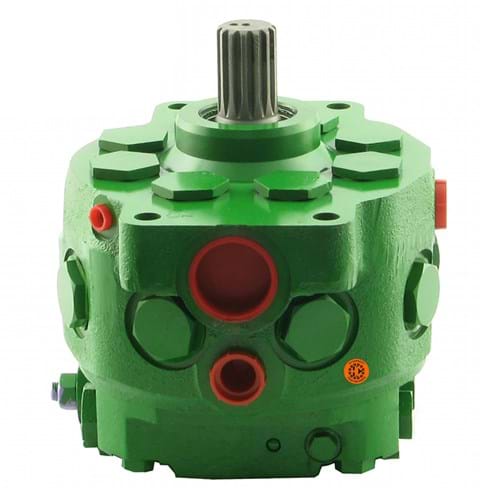

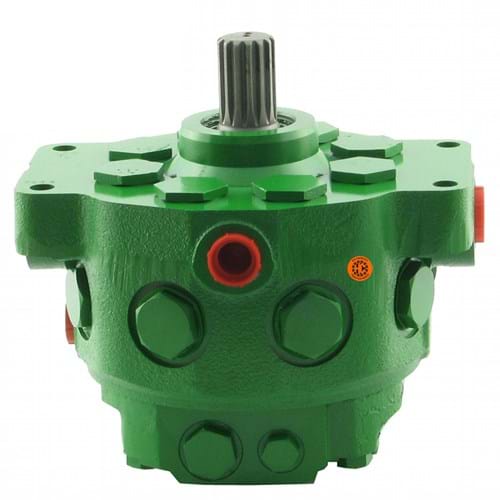

R94657N Hydraulic Pump - New

R94657N Hydraulic Pump - New

Regular price $1,278.75 USD
Regular price $1,321.53 USD Sale price $1,278.75 USD
Sale Sold out
Shipping calculated at checkout.

R94657N Hydraulic Pump - New Notes

Hydraulic Pump, 15 GPM, Non-Serialized

8 piston, non-serialized pump. Built using all new components. Pressure set to OEM specifications, flow tested at operating temperature & assembled in the USA, at our facility in Iowa.

Everyone knows how important hydraulics are. Read our blog post, "What Makes Hy-Capacity Hydraulic Pumps so Great?" here.

The R94657N Hydraulic Pump - New fits equipment brands such as: John Deere

The R94657N is a substitute for the following discontinued products: R94657NH, R94657

R94657N Hydraulic Pump - New Specs

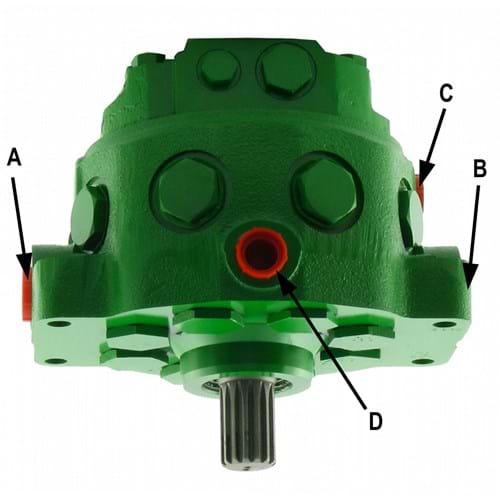

  • Dimensions[A] 1-1/16" Suction; [B] 1-5/8" Suction; [C] 7/8" Pressure; [D] 7/8" Cooler
  • Displacement 2.4 CI / REV
  • Flow Rate 15 GPM
  • Location Engine
  • New
  • Shaft Splined
  • Sold As Each

Documents & Resources -

This Part Fits These Machines

Fit Notes are displayed after the Model

John Deere
COTTON PICKER
9950S/N 2000->, Splined Shaft Pump 9960Splined Shaft Pump 9965Splined Shaft Pump 9970Splined Shaft Pump
LOADER BACKHOE
500Splined Shaft Pump
TRACTOR
1830Splined Shaft Pump 1840Splined Shaft Pump 2030Splined Shaft Pump, Models Produced in Waterloo, Iowa. 2130Splined Shaft Pump 2155Splined Shaft Pump; Drive thru Hydraulic Pump w/ Front PTO is an Option for this Model, (Shaft Goes Thru the Pump)-Not Available from Hy-Capacity 2350Splined Shaft Pump 2355Splined Shaft Pump; Drive thru Hydraulic Pump w/ Front PTO is an Option for this Model, (Shaft Goes Thru the Pump)-Not Available from Hy-Capacity 2440Splined Shaft Pump 2510Also order 1-6408-20 Plug. A 4 piston splined shaft pump is original for this Model. No Core Credit will be issued. 2550Splined Shaft Pump 2555Splined Shaft Pump; Drive thru Hydraulic Pump w/ Front PTO is an Option for this Model, (Shaft Goes Thru the Pump)-Not Available from Hy-Capacity 2630Splined Shaft Pump 2640Splined Shaft Pump 2750Splined Shaft Pump 2755Splined Shaft Pump; Drive thru Hydraulic Pump w/ Front PTO is an Option for this Model, (Shaft Goes Thru the Pump)-Not Available from Hy-Capacity 2840Splined Shaft Pump 2855NSplined Shaft Pump; Drive thru Hydraulic Pump w/ Front PTO is an Option for this Model, (Shaft Goes Thru the Pump)-Not Available from Hy-Capacity 2940Splined Shaft Pump 2950Splined Shaft Pump 2955Splined Shaft Pump; Drive thru Hydraulic Pump w/ Front PTO is an Option for this Model, (Shaft Goes Thru the Pump)-Not Available from Hy-Capacity 3030Splined Shaft Pump 3040Splined Shaft Pump 3050Splined Shaft Pump; Drive thru Hydraulic Pump w/ Front PTO is an Option for this Model, (Shaft Goes Thru the Pump)-Not Available from Hy-Capacity 3055Splined Shaft Pump; Drive thru Hydraulic Pump w/ Front PTO is an Option for this Model, (Shaft Goes Thru the Pump)-Not Available from Hy-Capacity 3130Splined Shaft Pump 3140Splined Shaft Pump; Drive thru Hydraulic Pump w/ Front PTO is an Option for this Model, (Shaft Goes Thru the Pump)-Not Available from Hy-Capacity 3150Splined Shaft Pump 3155Splined Shaft Pump; Drive thru Hydraulic Pump w/ Front PTO is an Option for this Model, (Shaft Goes Thru the Pump)-Not Available from Hy-Capacity 3255Splined Shaft Pump; Drive thru Hydraulic Pump w/ Front PTO is an Option for this Model, (Shaft Goes Thru the Pump)-Not Available from Hy-Capacity 3350Splined Shaft Pump; Drive thru Hydraulic Pump w/ Front PTO is an Option for this Model, (Shaft Goes Thru the Pump)-Not Available from Hy-Capacity 3640Splined Shaft Pump; Drive thru Hydraulic Pump w/ Front PTO is an Option for this Model, (Shaft Goes Thru the Pump)-Not Available from Hy-Capacity
