Farmgrit

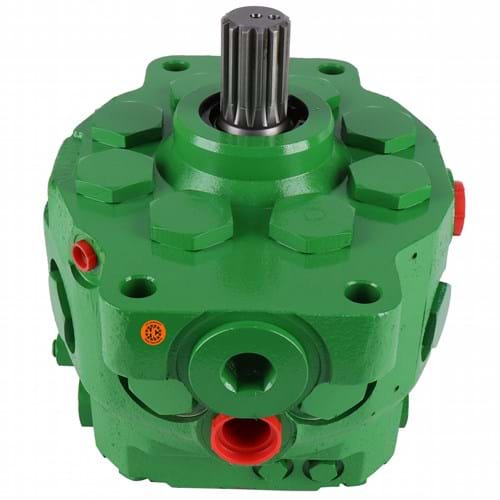

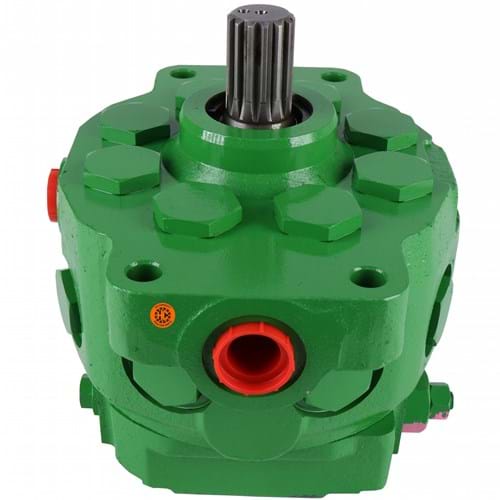

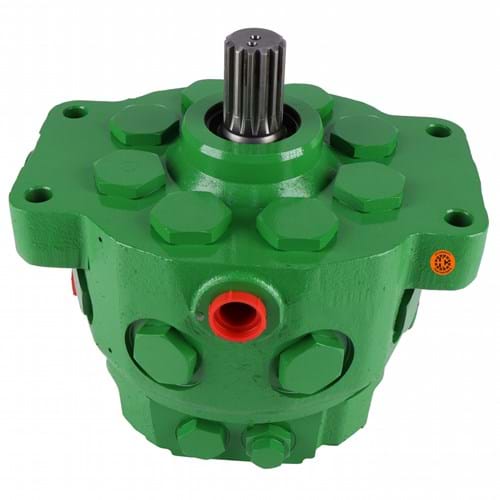

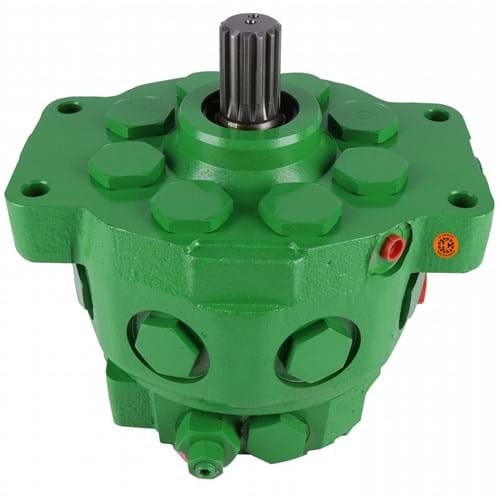

R94658N Hydraulic Pump - New

R94658N Hydraulic Pump - New

Regular price $1,258.60 USD
Regular price $1,321.53 USD Sale price $1,258.60 USD
Sale Sold out
Shipping calculated at checkout.

R94658N Hydraulic Pump - New Notes

Hydraulic Pump, 19 GPM, Serialized

8 piston, serialized pump. Pressure set to OEM specifications, flow tested at operating temperature at our facility in Iowa.

Everyone knows how important hydraulics are. Read our blog post, "What Makes Hy-Capacity Hydraulic Pumps so Great?" here.

The R94658N Hydraulic Pump - New fits equipment brands such as: John Deere

The R94658N is a substitute for the following discontinued products: R94658, R94658NH

R94658N Hydraulic Pump - New Specs

  • Dimensions[A] 1-1/16" Suction; [B] 1-5/8" Suction; [C] 1-1/16" Pressure; [D] 7/8" Cooler
  • Displacement 3.0 CI / REV
  • Flow Rate 19 GPM
  • Location Engine
  • New
  • Shaft Splined
  • Sold As Each

Documents & Resources -

Cross Reference Numbers

This Part Fits These Machines

Fit Notes are displayed after the Model

John Deere
TRACTOR
1640Splined Shaft Pump 1830Splined Shaft Pump 1840Splined Shaft Pump 2030Splined Shaft Pump, Tractor Manufactured in Waterloo, Iowa. 2040Splined Shaft Pump, Models Produced in Mannheim, Germany. 2040SSplined Shaft Pump, Drive thru Hydraulic Pump w/ Front PTO is an option for this Model, (Shaft goes thru the Pump) Not Available from Hy-Capacity. 2130Splined Shaft Pump 2140Splined Shaft Pump, Drive thru Hydraulic Pump w/ Front PTO is an option for this Model, (Shaft goes thru the Pump) Not Available from Hy-Capacity. 2155Splined Shaft Pump, Drive thru Hydraulic Pump w/ Front PTO is an option for this Model, (Shaft goes thru the Pump) Not Available from Hy-Capacity. 2350Splined Shaft Pump 2355Splined Shaft Pump, Drive thru Hydraulic Pump w/ Front PTO is an option for this Model, (Shaft goes thru the Pump) Not Available from Hy-Capacity. 2440Splined Shaft Pump 2520Splined Shaft Pump; 4-Piston Splined Shaft Pump is Original Pump for this Model - No Core Credit Will Be Issued on These Pumps. 2550Splined Shaft Pump 2555Splined Shaft Pump, Drive thru Hydraulic Pump w/ Front PTO is an option for this Model, (Shaft goes thru the Pump) Not Available from Hy-Capacity. 2630Splined Shaft Pump 2640Splined Shaft Pump 2750Splined Shaft Pump 2755Splined Shaft Pump, Drive thru Hydraulic Pump w/ Front PTO is an option for this Model, (Shaft goes thru the Pump) Not Available from Hy-Capacity. 2840Splined Shaft Pump 2855NSplined Shaft Pump, Drive thru Hydraulic Pump w/ Front PTO is an option for this Model, (Shaft goes thru the Pump) Not Available from Hy-Capacity. 2940Splined Shaft Pump 2950Splined Shaft Pump 2955Splined Shaft Pump, Drive thru Hydraulic Pump w/ Front PTO is an option for this Model, (Shaft goes thru the Pump) Not Available from Hy-Capacity. 300Splined Shaft Pump 3010Splined Shaft Pump; Seal Drain Kit R39810 is required for machines not previously updated. 3020Synchro-Range & Powershift Models 3030Splined Shaft Pump 3040Splined Shaft Pump 3050Splined Shaft Pump, Drive thru Hydraulic Pump w/ Front PTO is an option for this Model, (Shaft goes thru the Pump) Not Available from Hy-Capacity. 3055Splined Shaft Pump, Drive thru Hydraulic Pump w/ Front PTO is an option for this Model, (Shaft goes thru the Pump) Not Available from Hy-Capacity. 3130Splined Shaft Pump 3140Splined Shaft Pump, Drive thru Hydraulic Pump w/ Front PTO is an option for this Model, (Shaft goes thru the Pump) Not Available from Hy-Capacity. 3150Splined Shaft Pump 3155Splined Shaft Pump, Drive thru Hydraulic Pump w/ Front PTO is an option for this Model, (Shaft goes thru the Pump) Not Available from Hy-Capacity. 3255Splined Shaft Pump, Drive thru Hydraulic Pump w/ Front PTO is an option for this Model, (Shaft goes thru the Pump) Not Available from Hy-Capacity. 3350Splined Shaft Pump, Drive thru Hydraulic Pump w/ Front PTO is an option for this Model, (Shaft goes thru the Pump) Not Available from Hy-Capacity. 3640Splined Shaft Pump, Drive thru Hydraulic Pump w/ Front PTO is an option for this Model, (Shaft goes thru the Pump) Not Available from Hy-Capacity. 400Splined Shaft Pump 4000Synchro-Range & Powershift Models 401Splined Shaft Pump 4010Splined Shaft Pump; Seal Drain Kit R39810 is required for machines not previously updated. 4020Synchro-Range & Powershift Models 4030Splined Shaft Pump 4040w/o Power Front Wheel Assist 4050Splined Shaft Pump 4055Splined Shaft Pump 4230w/o Power Front Wheel Drive 4240w/o Power Front Wheel Assist 4250Splined Shaft Pump 4255Splined Shaft Pump 4320S/N 014560 and Below, w/o Power Front Wheel Drive 4430w/o Power Front Wheel Drive 4440w/o Power Front Wheel Assist 4450Splined Shaft Pump 4455Splined Shaft Pump 4520w/o Power Front Wheel Drive 4620w/o Power Front Wheel Drive 4630w/o Power Front Wheel Drive 4640w/o Power Front Wheel Assist 4840Splined Shaft Pump 5010Splined Shaft Pump; Seal Drain Kit R39810 is required for machines not previously updated. 5020Splined Shaft Pump 6030Splined Shaft Pump 7020Splined Shaft Pump 75201972 - 75. Splined Shaft Pump

Farmgrit is the one stop online shop for all your parts needs. We are here to assist you in finding the correct part that you need for making repairs to your farm machinery. As a Hy-Cap Dealer we pride ourselves on our customer service, helping you, the farmer, to keep your business moving forward. Farmgrit has everything from AC parts to hydraulic parts to parts for the cab of your tractor. You can find chemicals and lubricants as well as LED Lighting needs. Farmgrit has parts for John Deere, Case IH, New Holland, AGCO, Bobcat, and Massey Ferguson.

We try to meet your needs for fast search by utilizing shopping by your machine type. You can also browse our section of most popular parts and accessories. Don't forget to take a look at our sale products. There may be something there that you have been wanting but felt you couldn't afford. Now you can. Welcome to our shop. Let us know how we can help.


Dimensions
