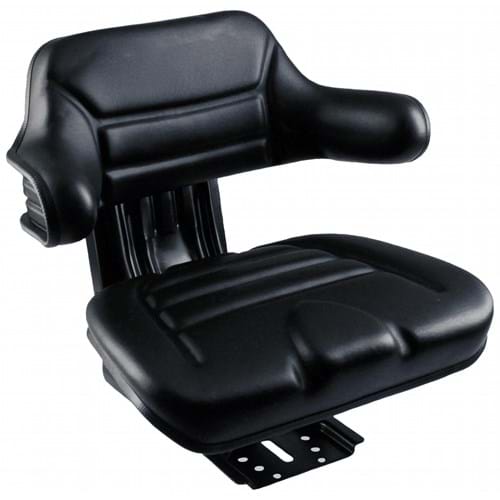

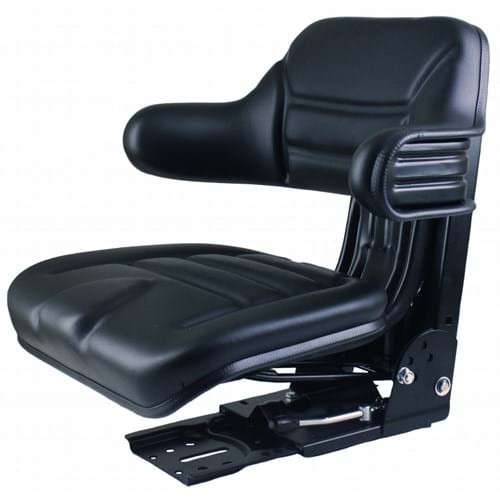

S830685 Wrap-Around Seat, Black Vinyl w/ Mechanical Suspension

S830685 Wrap-Around Seat, Black Vinyl w/ Mechanical Suspension Notes

Black sturdy metal seat frame w/ adjustable five angle base, slide rails, weight adjustment & fore/aft adjustment (150mm). Cushions are made of durable molded poly composite with padded inlays for comfort. Some minor drilling may be required.
Includes: Mechanical Suspension

The S830685 Wrap-Around Seat, Black Vinyl w/ Mechanical Suspension fits equipment brands such as: Belarus, Ford, Hesston-Fiat, John Deere, Kubota, Long, Mahindra, Massey Ferguson, Montana, New Holland, TAFE, White, Zetor

S830685 Wrap-Around Seat, Black Vinyl w/ Mechanical Suspension Specs

• Suspension Mechanical
• Color Black
• Material Vinyl
• Arm Rest No
• Capacity 286 lbs.

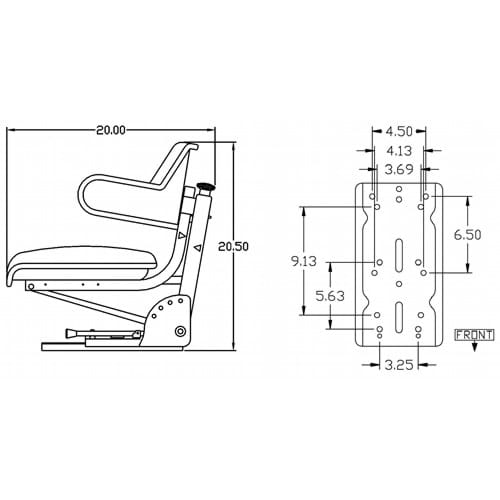

• Depth 21"
• Height 22-1/2"
• New
• Operator Presence Switch No
• Seat Belt No
• Seat Foam 3"
• Slide Rails Yes
• Sold As Each
• Warranty 1 Year
• Width 19-1/2"
• Wt. 34.75 Lbs.

Cross Reference Numbers

• 31-2905209

• 3A011-85010

• 3A211-85010

This Part Fits These Machines

Fit Notes are displayed after the Model
